Product Overview - MIL-STD-461 Power Supplies

MIL-STD-461 Compliant Power Supplies - low noise, ultra low ripple, programmable power supplies.

• Linear power supplies are great solutions for applications where the noise of switching power supplies interferes with the operation of the load and obscures performance measurements.
• Extremely stable output regulation for both load and source variations
• ATE Series only: slow mode ideal for constant voltage, fast mode ideal for constant current with rapidly changing load resistance
• Kepco has pure linears for Rack Mount, Bench and Modular applications.
• Configurable for compatibility with legacy applications.
• Power Solutions for the most demanding applications.

ATE 50W, 100W, 250W,    500W, 1000W Precision Programmable Linear, MIL-STD-461 Compliant Voltage/Current stabilizer 1 Output: 0 to 6/ 15/ 25/ 36/ 55/ 75/ 100/                   150V d-c	ATE-DMG 1000W Precision Digital Linear, MIL-STD-461 Compliant GPIB Programmable Voltage/Current stabilizer	BHK-MG 200W, 40W Linear Programmable GPIB MIL-STD-461 Compliant High Voltage:         300/ 500/ 1000/ 2000V Voltage/Current stabilizer
BOP 100W, 200W, 400W Programmable Bipolar Linear, MIL-STD-461    Compliant Optional GPIB or RS232 Optional ethernet control either    through a web page or by using SCPI    commands via Telnet. Voltage/Current stabilizer Option L optimized for inductive/magnet    loads Option C optimized for capacitive loads.	BOP-HV 40W 500V, 1000V Bipolar Linear, MIL-STD-461 Compliant Programmable Voltage/Current stabilizer	JQE 100W, 250W,    500W, 1000W Programmable V stabilizer Linear, MIL-STD-461 Compliant Analog programmable Input: 115/230V a-c 1 Output: 0 to 6/ 15/ 25/ 36/ 55/ 75/ 100/                    150V
MAT 360, 720, 1080W Programmable IEEE 1118 Bus Optional GPIB Adapter Linear, MIL-STD-461 Compliant Voltage/Current stabilizer input: 115/230V a-c 1 Output: 0 to 6/ 15/ 25/ 36/ 55/ 75/ 100/                    150V	MBT 360W Programmable Voltage/Current stabilizer Keypad Linear, MIL-STD-461 Compliant LCD IEEE 1118 (serial) bus GPIB and RS 232 optional Input: 115/230V a-c 1 Output: 0 to 6/ 15/ 25/ 36/ 55/ 75/ 100/                150V d-c	MPS 70W Low noise Voltage stabilizer Overvoltage Crowbar Adjustable Current Limit Linear, MIL-STD-461 Compliant Bench Input: 115/230V a-c 3 outputs:    • 0 to 6V (with OVP) / 0 to 5A    • 0 to +20V / 0 to 1A    • 0 to -20V / 0 to 1A
MSK 100W Linear, MIL-STD-461    Compliant Bench-top Input: 115/230V a-c 1 Output: 0 to 10/ 20/ 40/ 60/ 126V d-c	PAT 20W Linear, MIL-STD-461    Compliant Programmable Voltage/Current stabilizer input: 115/230V a-c 1 Output: 0 to 7/ 15/ 21/ 40/ 72/ 100V d-c	PTR 60W Linear, MIL-STD-461    Compliant Programmable Voltage/Current stabilizers Separate V/C stabilization channels Input: 115/230V a-c 1 Output: 0 to 7/ 15/ 21/ 40/ 72/ 100V d-c
CC 20W Linear, MIL-STD-461    Compliant Programmable fast-recovery Current Stabilizer Bench/Rack Mount, pluggable Input: 115/230V a-c 1 Output: 0-7/ 15/ 21/ 40/ 72/ 100V d-c	PCX-MAT 20W Linear, MIL-STD-461    Compliant Programmable High speed Voltage Stabilizer Bench/Rack Mount, pluggable Input: 115/230V a-c 1 Output: 0-7/ 15/ 21/ 40/ 72/ 100/                    200V d-c	PRM Ferroresonant Power Supplies 60W, 120W, 180W, 280W, 300W, 450W Sizes Highly dependable Inherent overvoltage protection Efficiency 65% - 75% Fualt tolerant configurations available Linear, MIL-STD-461 Compliant
HSF 300W, 600W,    1200W, 1500W, Hot swap, N+1 Switching power supply Optional MIL-STD-461 compliance 1 Output: 3.3/ 5/ 12/ 15/ 24/ 28/ 48V Wide range input:     95-264V a-c/125-370V d-c,	HSF 50W, 100W, 150W Hot swap, N+1 Switching power supply Optional MIL-STD-461 compliance 1 Output: 3.3/ 5/ 12/ 15/ 24/ 28/ 48V Wide range input:     95-264V a-c/125-370V d-c	HSF-1UR 50W, 100W, 150W 1U Profile Hot swap, N+1 Switching power supply Optional MIL-STD-461 compliance 1 Output: 5/ 12/ 15/ 24/ 28/ 48V Wide range input:     95-264V a-c/125-370V d-c,
HSP 1000, 1500W Hot swap N+1, redundancy PFC Switching power supply Optional MIL-STD-461 compliance Wide range a-c input 1 Output: 3.3/ 5/ 12/ 15/ 24/ 28/ 48/ 125V	KHX Submersible 1000, 1500W N+1, redundancy PFC Switching power     supply Optional MIL-STD-461 compliance Wide range a-c input 1 Output: 3.3/ 5/ 12/ 15/ 24/ 28/ 48/ 125V	HWS 300, 600, 1000,    1500W Remote Programmable Limited lifetime warranty UL 508 approved Small Size Optional MIL-STD-461 compliance Fully enclosed, 1 Output:    • 300W, 600W: 3.3/ 5/ 12/ 15/ 24/ 48V d-c    • 1000W, 1500W: 3.3/ 5/ 6/ 7.5/ 12/ 15/ 24/                               36/ 48/ 60V d-c Semi F47 Compliant (high line a-c) Universal input (85-265V a-c) RoHS compliant

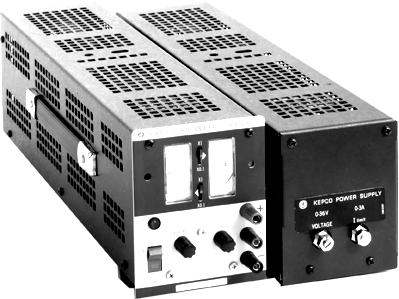

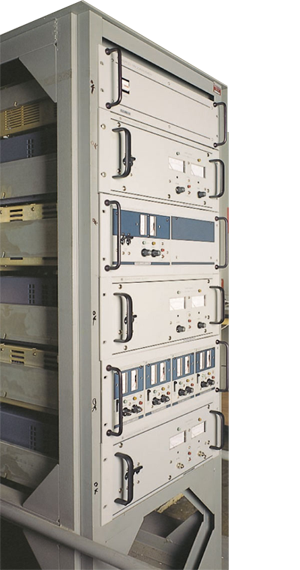

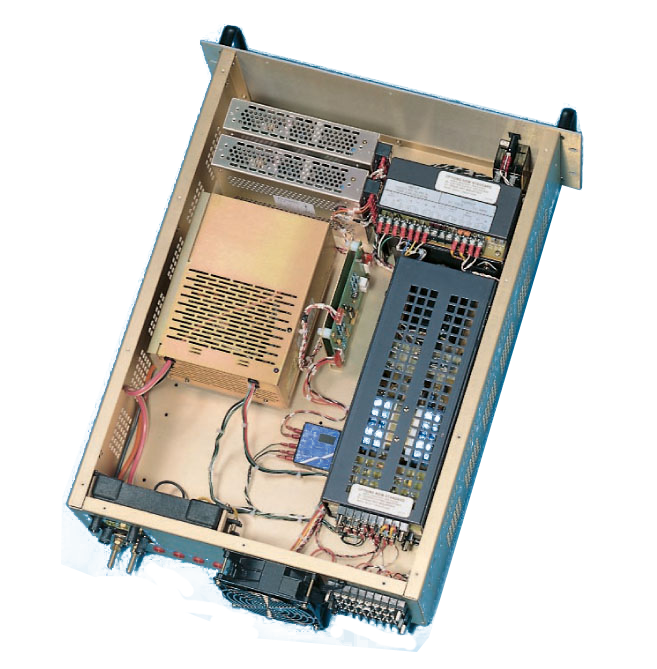

Multi-output Linear Power Supplies Customer-configured; contact factory for quote.	Integrated Solutions Custom configured to meet    application requirements. Contact factory for quote.	JQE Modular (w/o meter) 100, 250, 500, 1000W Linear Power Supply Voltage stabilizer Analog programmable Input: 115/230V a-c Output: 0 to 6/ 15/ 25/ 36/ 55/ 75/ 100/                 150V d-c
DIN-mounted Linear Power Supplies Series PAT, 20W Series PTR, 60W Series JQE, 100, 250, 500W Series PRM 60 - 480W
