PROGRAMMERS/CONTROLLERS/INTERFACES
Ethernet controlled bipolar power supply: BOP 100W, 200W, 400W Power Supply PhotoBOP-E Series
(Ethernet control)
  • True 4-quadrant
       programmable voltage
       and current power
       supplies.
  • 14 Standard Models
  • ± 0-5V to ± 0-200V
  • ± 0-5A to ± 0-30A
  • Inductive load and
       capacitive load optimized versions.
  • Dual-range, 16-bit interface provides 15
       bits of resolution for both full and quarter
       scale of output.

    Link to associated quotation page

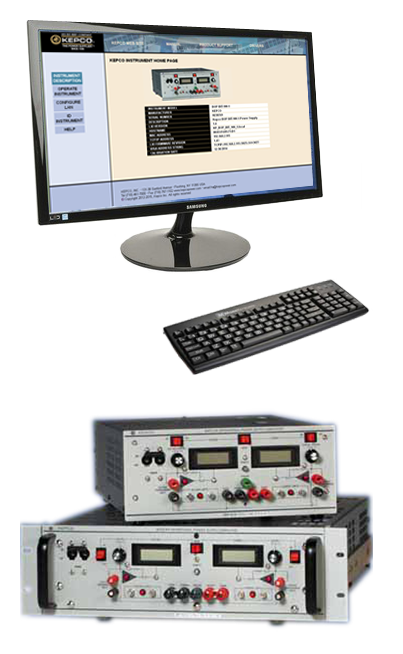

  • Ethernet controlled bipolar power supply: BOP 100W, 200W, 400W Power Supply PhotoBIT 802E
    (Ethernet control)
  • Field upgrade of
       standard BOP for
       LAN/Web control.
  • Controls BOP via web
       pages and socket
       interfaces.
  • Setup using web page.
  • Labview G, C drivers.
  • LXI version 1.4
       compatible
  • Soft Calibration
  • Dual-range 16-bits
  • 15 bits resolution for
       full and 1/4 scale of output.
  • Arbitrary waveform generator.
    Link to associated quotation page

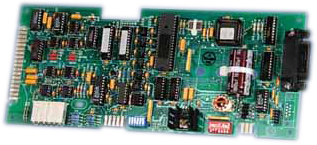

  • BIT 4886
    (GPIB control)
  • Connects BOP to
       IEEE 488.2 Bus
  • Talk/listen support
  • 16-bit
  • Resolution of 1/216
  • Supports SCPI/CIIL
  • PC Card inserted in BOP
    Link to associated quotation page
  • MBT-G
  • Full feature MBT
  • Interface between IEEE
       488.2 or RS 232 and
       Kepco Control bus (IEEE 1118)
  • Controls up to 27 Kepco power supplies
       (MAT, MBT, MST, BOP, etc.)
  • Remote control to 1000 ft.
  • Supports SCPI/CIIL
  • Bench top instrument
    Link to associated quotation page
  • MST 488-27
  • Interface between
       IEEE 488.2 or
       RS 232 and
       Kepco Control bus (IEEE 1118).
  • Controls up to 27 Kepco power supplies
       (MAT, MBT, MST, BOP, etc.)
  • Remote control to 1000 ft.
  • Supports SCPI/CIIL
  • Modular (1/9 rack width)
  • Fits RA 55/CA 400 Rack Adapter used with
       MST power supplies.
    Link to associated quotation page

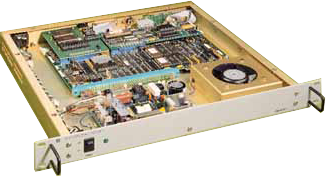

  • TMA 4882-27
  • Interface between
       IEEE 488.2 or
       RS 232 and
       Kepco Control bus
       (IEEE 1118)
  • Controls up to 27 Kepco power supplies
       (MAT, MBT, MST, BOP, etc.)
  • Remote control to 1000 ft.
  • Supports SCPI/CIIL
  • Bench/rack-mountable
    Link to associated quotation page
  • TMA VXI-27
  • Interface between VXI bus
       and Kepco Control bus
       (IEEE 1118)
  • Controls up to 27 Kepco power
       supplies (MAT, MBT, MST,
       BOP, etc.)
  • Remote control to 1000 ft.
  • Supports 'plug and play,'
  • Supports SCPI/CIIL.
    Link to associated quotation page
  • SN 488-B, -D
  • Program Boards for
       SNR 488 Programmer
  • 1 per power supply
  • -B for Hex input
  • -D for 3-bit BCD input
    Link to associated quotation page
  • SN 488
  • Digital Programmer
  • 1 or 2 Channels
  • IEEE 488 Listener for
       Kepco's Programmable
       Models (JQE , ATE,PAT, PTR etc.)
  • Precise 0-10V analog output
    Link to associated quotation page

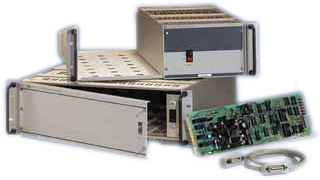

  • SNR 488
  • Digital
       Programmer
  • Multi-channel
  • D/A Conversion
  • IEEE 488 Listener for
       up to 8 Programmable Models (JQE,
       ATE, PAT, PTR etc.)
  • Input: Hex or 3-bit BCD
  • Output: Precise 0 to ±10V
                   or ±1V analog
    Link to associated quotation page
  •
