Resistive Loads. To realize the full high speed potential of BOP, the load characteristics should be mainly resistive.
Inductive Loads. Kepco's 100W, 200W and 400W L option BOP models are magnet power supplies, optimized for driving inductive loads. This option makes the BOP suitable for a wide variety of applications such as motor testing, testing of magnetic components (coils, speakers, etc.), industrial applications with inductive loads, driving CRT coils, cryogenic applications and powering correcting magnets for medical imaging applications or particle accelerators. For further guidance on using optimized (L or C suffix) models vs. standard models, see Application Note: When to Use BOP Standard or Optimized (L or C Suffix) to Drive Reactive Loads.
Capacitive Loads. Kepco's 100W, 200W and 400W C option BOP models are optimized for driving capacitive loads. This option makes the BOP suitable for a wide variety of applications such
as solar cell/panel testing, driving and testing piezo-electric devices, capacitor testing, driving and testing
capacitive transducers, and power for industrial or lab applications with capacitive or capacitive-resistive loads. For further guidance on using optimized (L or C suffix) models vs. standard models, see Application Note: When to Use BOP Standard or Optimized (L or C Suffix) to Drive Reactive Loads.
|

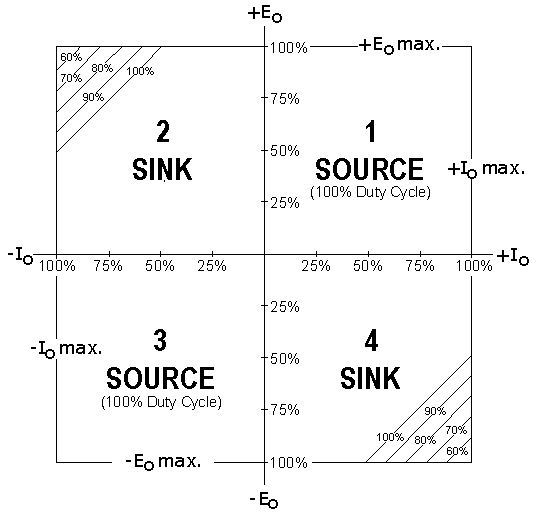

BOP Output Characteristics: 4 Quadrant with smooth crossing through zero
|
Operational Amplifier. BOP, while fully rated power supplies, are also high-powered operational amplifiers with
full 4-quadrant, bipolar operation. Their output is capable of both sustained d-c and the
replication of arbitrary a-c waveforms.
In Kepco¹s BOP, the voltage and current outputs can be controlled smoothly and linearly
through the entire rated plus and minus ranges, passing smoothly through zero with no
polarity switching.

BOP 5-20DL and BOP5-30DL High Current Magnet Power Supplies
|
BOP E-Series for Ethernet Control.
The BOP E-Series is the Ethernet-controlled version of Kepco's BOP bipolar power supplies. All 14 BOP E-Series models offer full control of the bipolar output, either through a web page using a browser, or by using SCPI commands via Telnet. The BOP E-Series employs an interface between the digital data bus and the BOP, accepting the digital input data and converting it to an analog signal, which in turn, controls the BOP output. The BOP E-Series is fully compliant with the SCPI programming language. BOP-E Series is available in versions optimized for inductive loads or capacitive loads.
EPICS Driver (Linux compatible) now available!
Remote Digital Control. BOP accept BIT plug-in cards for remote digital control; cards may be factory-installed. BIT 4886 provides 16-bit IEEE 488.2 talk-listen control with SCPI support.
With a BIT 4886 card installed, BOP can also be controlled via a USB port on a Windows 10 computer using KIT 219-0630, available as an accessory. For further details, DOWNLOAD the Instruction Sheet for KIT 219-0630.
BIT 802E provides Ethernet control, offering full control of the bipolar output, either through a web page using a browser or by using SCPI commands via Telnet.
Dual Channel BOP.
Kepco's Series BOP 2X dual-channel BOP models are 200W and 400W power supplies. Each channel is a separate power supply, completely isolated, independent and functionally identical. The 200W units have two 100W channels and the 400W units have two 200W channels. Dual channel models come in a single full rack chassis capable of mounting in a standard 19-inch wide rack. The channels are completely isolated, but share two digital front panel meters (without affecting isolation) which display output voltage and current for the channel selected by the front panel Channel select switch. A single power cord powers both channels; separate on-off circuit breakers turn each channel on/off separately.
The two channels are independent. They have separate input control signals and separate output ports. Remote programming can be configured so that each channel operates independently, or the input control can be connected in parallel so both channels are programmed by the same signal.
The unit at left is an assembled-to-order BOP system that has four BOP Dual Channel power supplies providing eight (8) bipolar channels, as well as two (2) hot-swap, fixed output channels and customer-specified output and control connectors.
BOP's are UL listed conforming to 61010-1 safety standard and CE Marked per the LVD, EMC and RoHS 2 Directives. See applicable Declaration of Conformity.

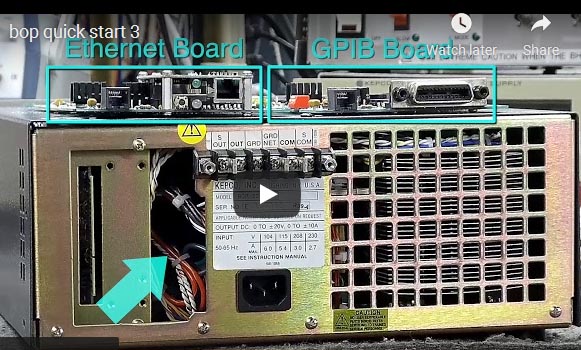

Need an introduction to BOP power supplies? Check out the BOP Tutorial video for a brief overview of connecting and operating Kepco's BOP power supplies.
|
