[BOP 2X (DUAL CHANNEL) SEE BELOW)]
[BOP 3/4 RACK DIMENSIONS]
[BOP Full RACK DIMENSIONS]

2X (Dual Channel) Full Rack Models: 200 Watt Models: BOP 2X5-20D, BOP 2X20-5D, BOP 2X50-2D, BOP 2X100-1D
400 Watt Models: BOP 2X5-30D, BOP 2X20-10D, BOP 2X36-6D, BOP 2X50-4D, BOP 2X72-3D, BOP 2X100-2D
These models are 3U high.

Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.

Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions.

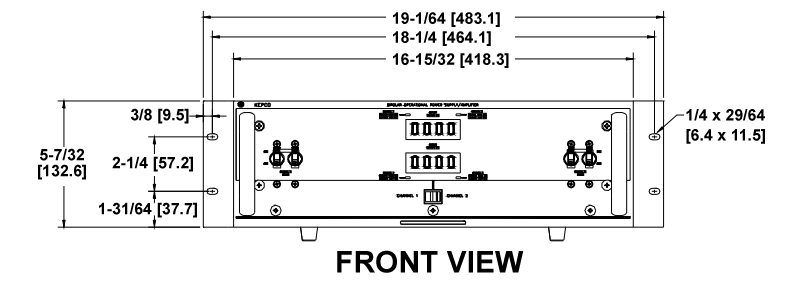

BOP 2X (Dual Channel) Front View Dimensions

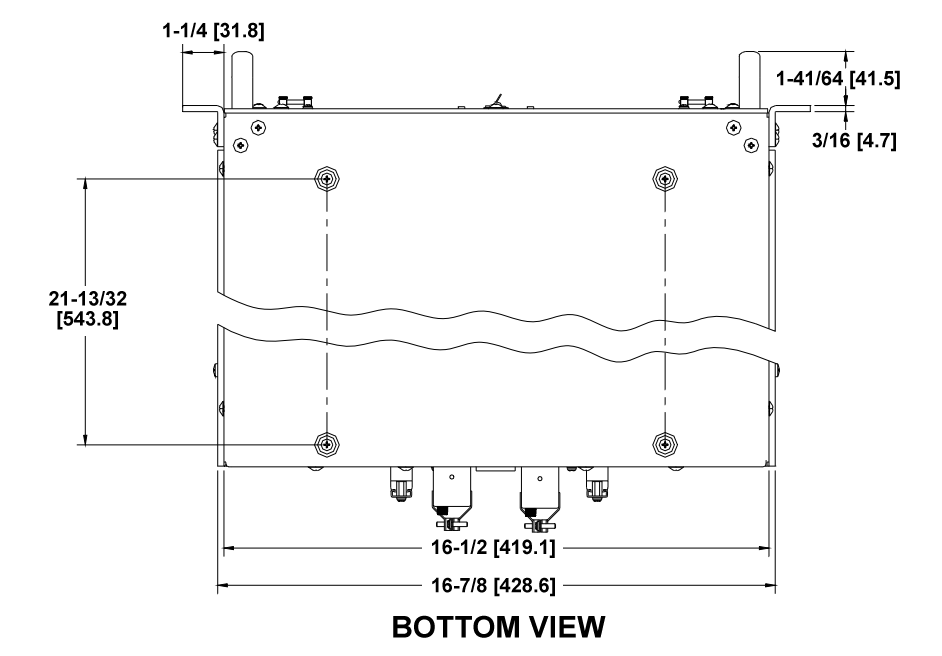

BOP 2X (Dual Channel) Bottom View Dimensions

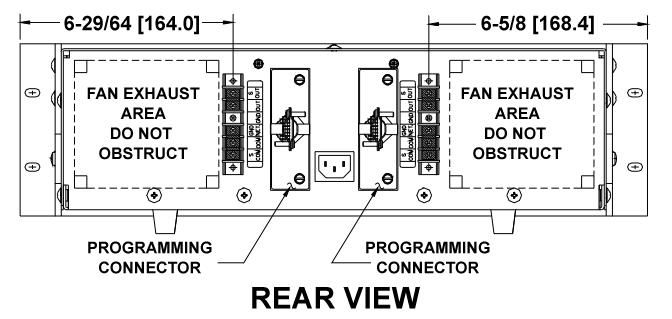

BOP 2X (Dual Channel) Rear View Dimensions

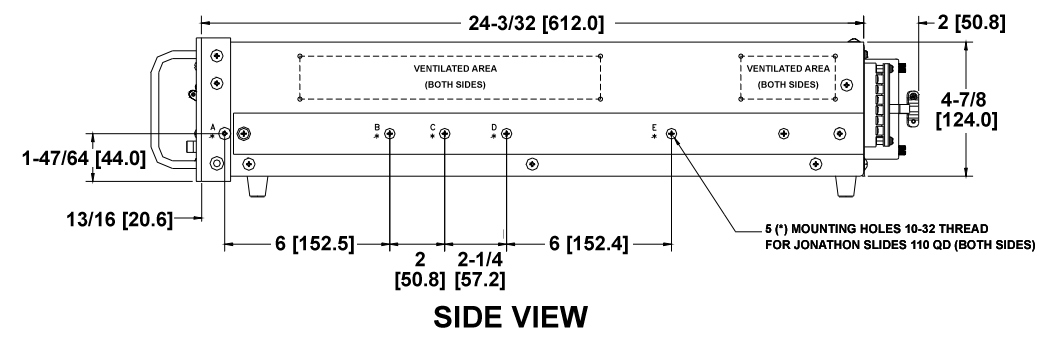

BOP 2X (Dual Channel) Side View Dimensions
