[BOP FULL RACK (SEE BELOW)]
[BOP 3/4 RACK DIMENSIONS]
[BOP 2X (DUAL CHANNEL) DIMENSIONS]

Full Rack Models (400 Watt Models, BOP 5-20D, BOP 5-30D and BOP 200-1)
These models are 3U high.

Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.

Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions.

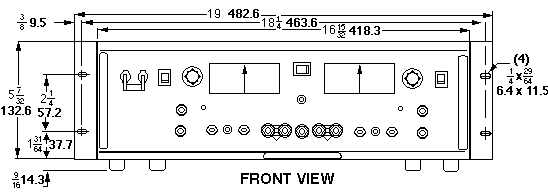

BOP Dimensions

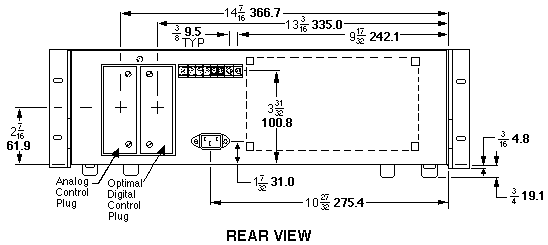

BOP Dimensions

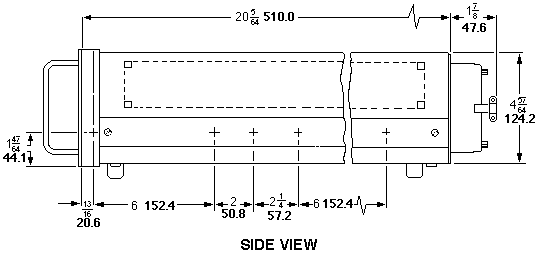

BOP Dimensions

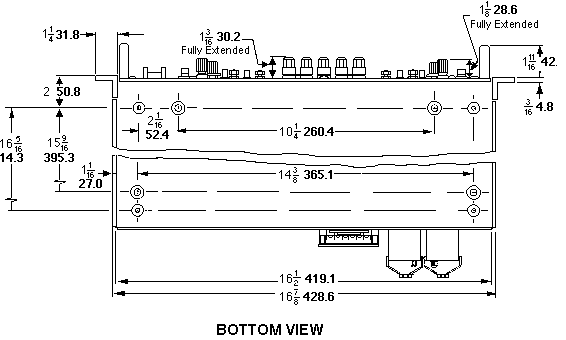

BOP Dimensions
