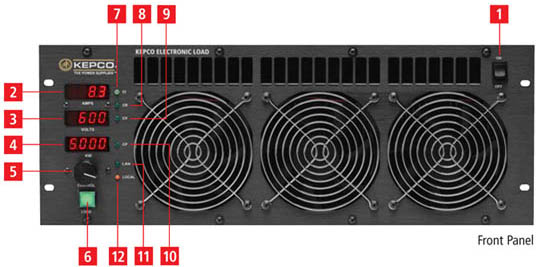

1. Power Switch
2. Current Display (Autorange)
3. Voltage Display (Autorange)
4. Power Display (Autorange)
5. Multifunction Control Knob - Press to Select Mode, Turn for Set Point
6. LOAD - Green for Standby, Amber for Engaged, Press to Engage/Disengage, Flashing Red for Fault
7. LED Constant Current Mode (CI)
8. LED Constant Resistance Mode (CR), Blinks for Constant Conductance Mode (CS)
9. LED Constant Voltage Mode (CV)
10. LED Constant Power Mode (CP)
11. LED LAN (Lit When LAN Connected)
12. LED Local
All Mode LEDs Blinking ON - Short
All Mode LEDs OFF - Mode Off
|
