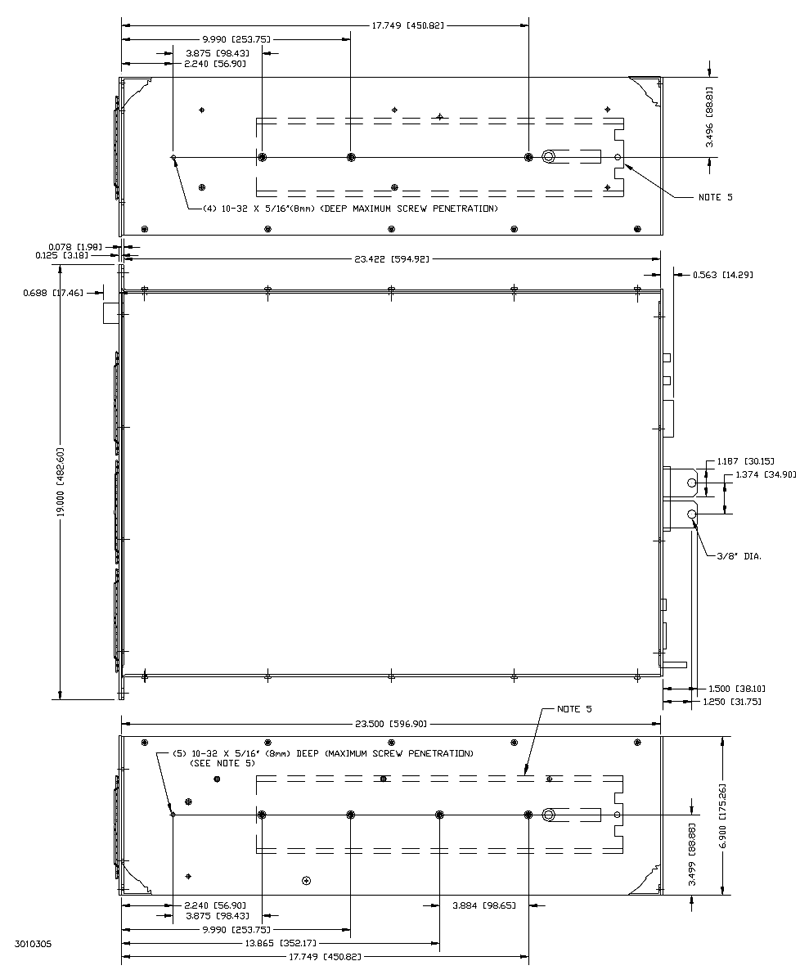

Series EL Outline Dimensions |
|
NOTE: Extension brackets are available to allow for mounting in relay racks and shallow rack cabinets thet cannot accomodate the power supply depth. The brackets mount to the rail of the rack, then the mounting ears of the power supply are attached to the brackets. The power supply will protrude from the rack per dimension "D" as shown. Two brackets required per unit.
|
