INTERNAL CONNECTOR MODEL PCA X-3 FOR BOP POWER SUPPLIES.
This card plugs into the same slot as the BIT card of Kepco's Series BOP power supplies and serves as the interface between Kepco TLD 488-16 with TL 488-4B programmable card and a BOP power supply. This interface card has the function of routing power supply signals and the d-c monitoring levels for the TL 488-4B card and processing signals from TL 488-4B to the BOP power supply. It is provided with a 2-meter-long cable to interconnect the BOP power supply to the corresponding TL 488-4B input.INTERFACE CONNECTOR SERIES PCA FOR ATE POWER SUPPLIES.

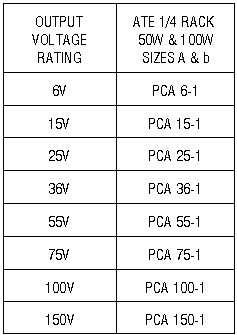

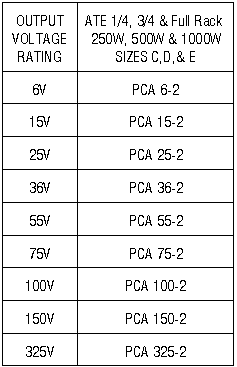

The PCA consists of a connector assembly and a 2-meter-long cable, to interconnect a programmable power supply and the TLD 488-16. Select the proper PCA model from the tables below:
