NOTE: MRW Models are no longer available.

MRW 150KV suggested replacement is MTW 30-51212K; the associated cover is CA 40-R.
MRW 151KV is no longer available.
MRW 160KV suggested replacement is MTW 60-51212K; the associated cover is CA 41-R.
MRW 161KV is no longer available.
MRW 170KV suggested replacement is MTW 60-51212K; the associated cover is CA 41-R.
MRW 171KV is no longer available.
MRW 151KV is no longer available.
MRW MODEL DIMENSIONS
(HxWxD)		 WEIGHT
(Packed for shipment)		 OPTIONAL
STEEL ENCLOSURES		 INPUT-OUTPUT
CABLE KITS
150KV/
151KV
inches: 1.14 x 3.94 x 6.3
mm: 29 x 100 x 160
12.35oz, 350gm
CA 19
Kit 219-0184
160KV/
161KV
inches: 1.5 x 3.94 x 6.3
mm: 38 x 100 x 160
17.65oz, 500gm
CA 20
Kit 219-0184
170KV/
171KV
inches: 1.38 x 3.94 x 6.3
mm: 35 x 100 x 160
15.87oz, 450gm
CA 20
Kit 219-0239

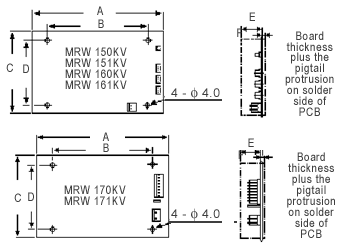

MRW 150/151/160/161//170/171KV Dimensions

Dimensions are in inches, dimensions in brackets are in millimeters.

MODEL
A
B
C
D
E
F
MRW 150KV
MRW 151KV
6.3
[160]
4.80
[121.9]
3.94
[100]
3.15
[80]
1.0
[25.4]
0.14
[3.6]
MRW 160KV
MRW 161KV
6.3
[160]
4.80
[121.9]
3.94
[100]
3.15
[80]
1.3
[33]
0.2
[5.0]
MRW 170KV
MRW 171KV
6.3
[180]
4.80
[121.9]
3.94
[100]
3.15
[80]
1.38
[35]
0.079
[2.0]

MRW 150KV photo
Models MRW 150KV, 151KV 		MRW 160KV photo
Models MRW 160KV, 161KV 		MRW 171KV photo
Models MRW 170KV, 171KV
