NOTE: MRW Models are no longer available.

MRW 150KV suggested replacement is MTW 30-51212K; the associated cover is CA 40-R.
MRW 151KV is no longer available.
MRW 160KV suggested replacement is MTW 60-51212K; the associated cover is CA 41-R.
MRW 161KV is no longer available.
MRW 170KV suggested replacement is MTW 60-51212K; the associated cover is CA 41-R.
MRW 171KV is no longer available.
MRW 151KV is no longer available.
There are three outputs in most MRW power supplies. Outputs #1 and #2 of the MRW 150/151KV and 160/161KV can share the available power as illustrated by these curves. For MRW 170/171KV all three outputs share the power. The curves illustrate these possibilities.

NOTE: The maximum current from each output is limited to the tabulated value.

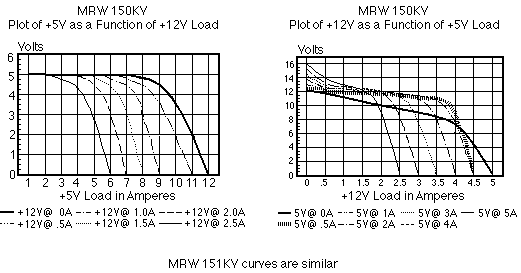

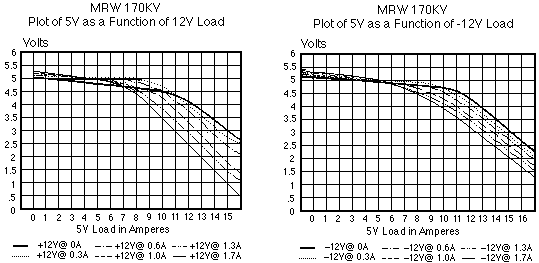

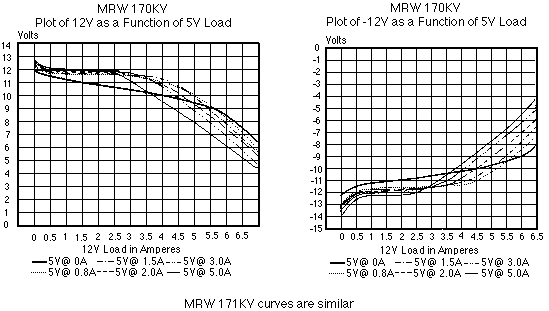

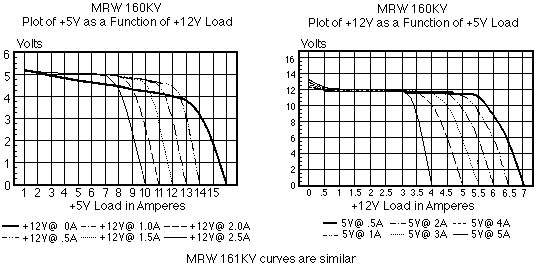

MRW Power curves

MRW Power curves

MRW Power curves

MRW Power curves
