| SERIES JQE MECHANICAL SPECIFICATIONS | |||
| Specification | Rating/Description | Condition | |
| Input Connection | Detachable IEC type 3-wire (1) | 1/4 and 1/2 rack sizes | |
| Permanently wired (2) | Full rack size | ||
| Output Connections | Front panel binding posts | Models under 15A | |
| Rear barrier strip | 1/4 and 1/2 rack sizes | ||
| Rear compression studs | Full rack size | ||
| Meters |
M suffix: | Two 1-1/2" vertical, 3%, analog | Front panel |
| DM suffix: |
Two 2.4" horizontal, digital: Voltage: 1%, Current: 1.5% |
||
| Indicators | Neon | Pilot | |
|
Mounting (in standard 19" racks) |
Use Ra 24 Rack Adapter | 1/4 and 1/2 rack sizes | |
| Mounting "ears" provided | Full rack size | ||

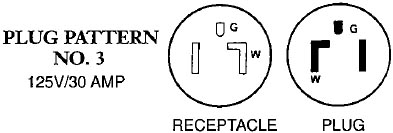

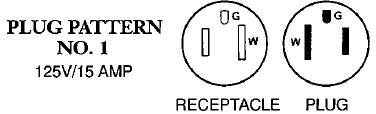

| (1) |
|
| (2) |
|
