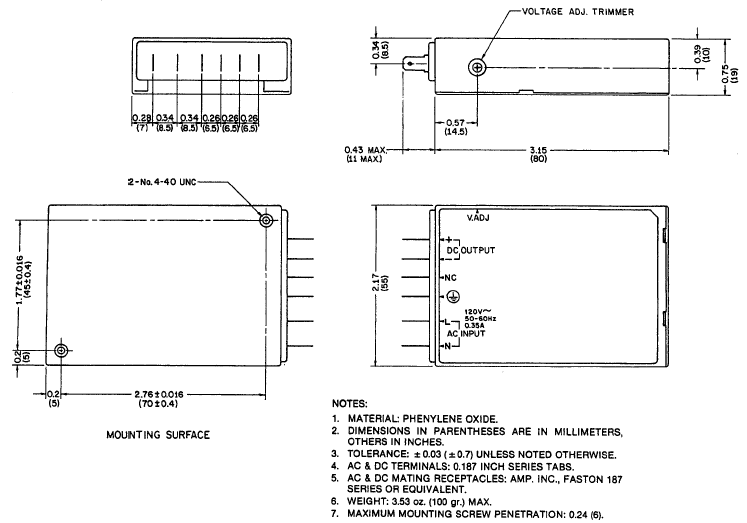

OUTLINE DRAWING
DIMENSIONS (HxWxD)
- inches: 0.75 x 2.17 x 3.15
- mm: 19 x 55 x 80
WEIGHT (Packed for shipment)
- 3.53oz, 100gm
Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.
Tolerances: 0.4" (1.0mm) unless otherwise noted
Munting: 4-40 tapped holes --(2) side; maximum screw penetration 0.2" (5mm)
