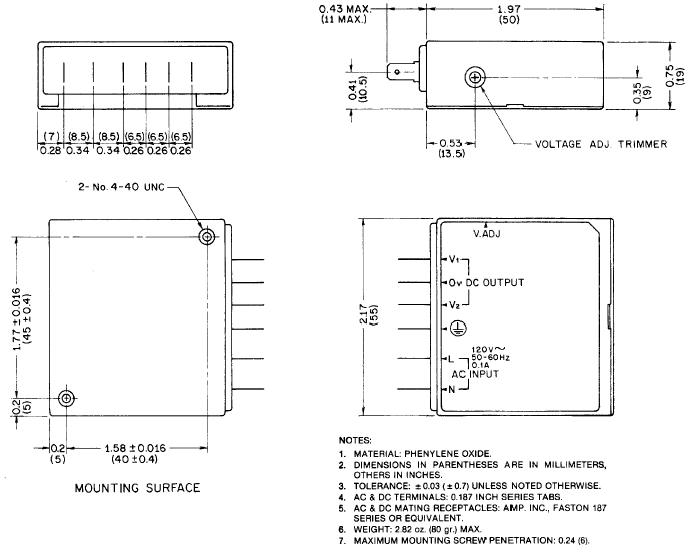

OUTLINE DRAWING

DIMENSIONS (HxWxD)

inches: 0.75 x 2.17 x 1.97
mm: 19 x 55 x 50

WEIGHT (Packed for shipment)

3W: 2.82oz, 80gm

Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.
Tolerances: 0.4" (1.0mm) unless otherwise noted
Munting: 4-40 tapped holes --(2) side; maximum screw penetration 0.2" (5mm)
