FMP Models are obsolete and are no longer available, however modern replacements are available. |

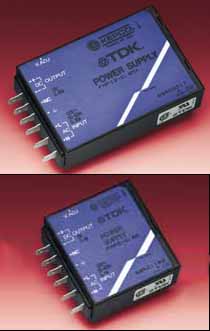

FMP 10 Watt (top) and FMP 3 Watt Models
These are plastic encased (not encapsulated) 3- and 10-Watt single output a-c
to d-c flyback voltage stabilizers, producing 5V, 12V, 15V, or 24V.FMP are designed for the North American market. They operate from 115V a-c nominal.
NOTE: FMP are not recommended for new designs. Availability is limited to factory stock.
FEATURES
- a-c input 85-132V; d-c input 110-170V Note: Safety approval for FMP applies to a-c operation only.
- ±10% voltage adjustment.
- Voltage limited by zener diode across output.
- Rectangular current limiting so you can drive nonlinear loads.
- Holding time: Output is sustained by internally stored energy for 30 milliseconds typically, 20 milliseconds minimum.
- Built-in EMI filter: Attenuates conducted noise below the requirements of FCC Class B.
- Low profile: Only 3/4" thick.
- Safety: All models recognized by UL, certified by CSA.
- FMP 5-2K is available in a PC Board mount version (FMP 5-2BK).
- DIN rail mountable
