Fractional dimensions in light face type are in inches, dimensions in bold face type in parentheses are in millimeters.

Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions.

[Top View] [Front View] [Side View] [Rear View]

Full Rack BHK-MG Dimensions, Top View

[Top View] [Front View] [Side View] [Rear View]

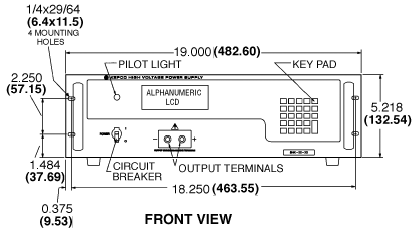

Full Rack BHK-MG Dimensions, Front View

[Top View] [Front View] [Side View] [Rear View]
Full Rack BHK-MG Dimensions, Side View

[Top View] [Front View] [Side View] [Rear View]

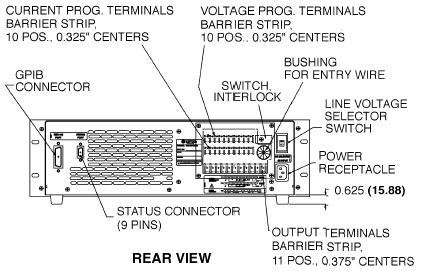

Full Rack BHK-MG Dimensions, Rear View
