Tolerance: ± 0.028" (0.7mm) between mounting holes; ± 0.04" (1.0mm) other dimensions.

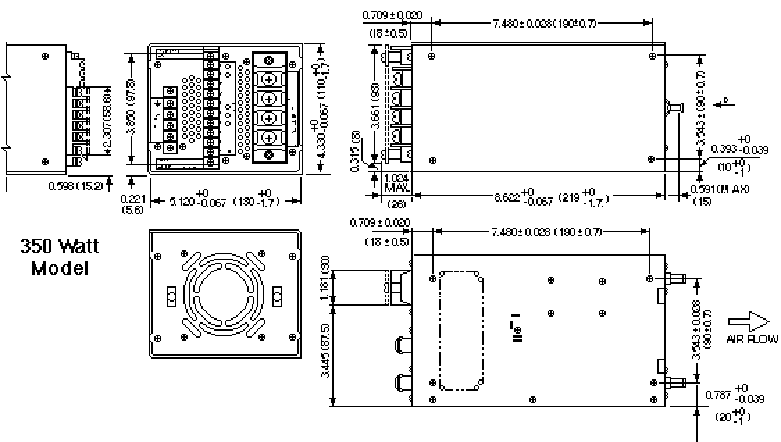

350 Watt Models
- Mounting: Metric, M-4 tapped holes -- (4) bottom, (3) each side; maximum screw penetration 0.24" (6mm).
- Net Weight: 7.0lbs, 3.2 Kg (Packed for Shipment)

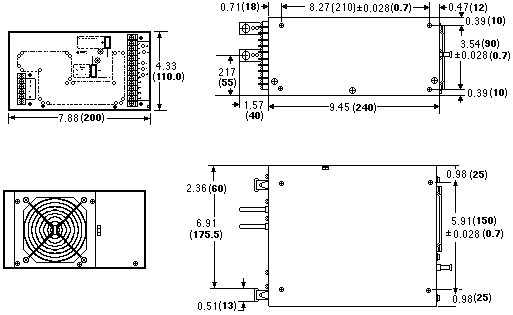

750 Watt Models
- Mounting: 8-32 tapped holes -- (4) bottom, (4) each side; maximum screw penetration 0.24" (6mm).
- Net Weight: 13.0 lbs, 5.9Kg (Packed for Shipment)

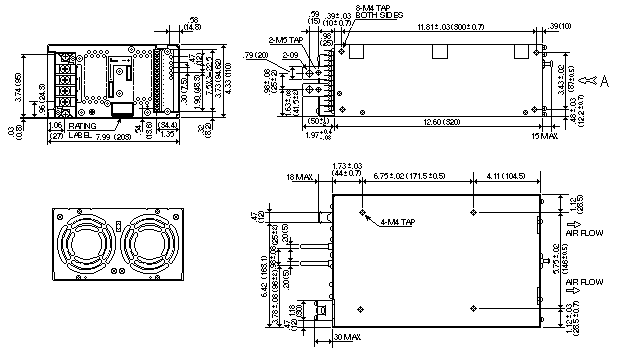

1500 Watt Models
- Mounting: Metric, M-4 tapped holes -- (4) bottom, (3) each side; maximum screw penetration 0.24" (6mm).
- Net Weight: 17.0 lbs, 7.7Kg (Packed for Shipment)
