Dimensions are in inches, dimensions in brackets are in millimeters.
RA 19-6B dimensions shown are similar for RA 19-7B
and RA 19-8B

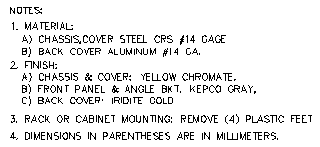

Tolerances:
- Fractions (unless otherwise specified): ± 1/64" (0.4)
- Decimals (2 places, 3 places) ±0.010 (0.254)

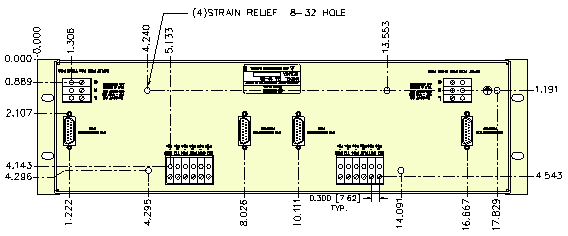

Rear View - RA 19-6B

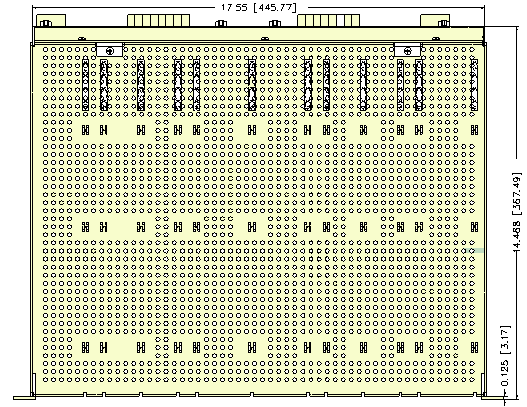

Top View - RA 19-6B

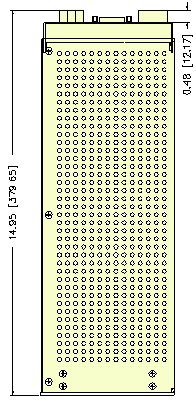

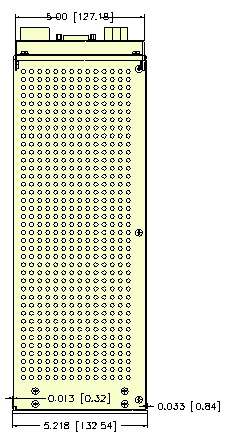

Side View - RA 19-6B
|
|
Front View - RA 19-6B
