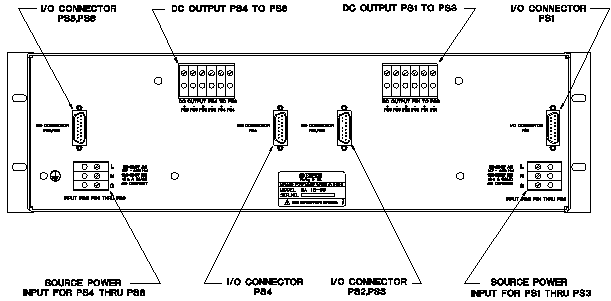

The view of the RA 19-6B rear panel shown above, typical of the RA 19-(X)B models, illustrates the dual input power connectors at the bottom of the panel, four I/O connectors in the middle of the panel, and the DC OUTPUT terminal blocks at the top. An illustration showing the internal interconnections is also available.

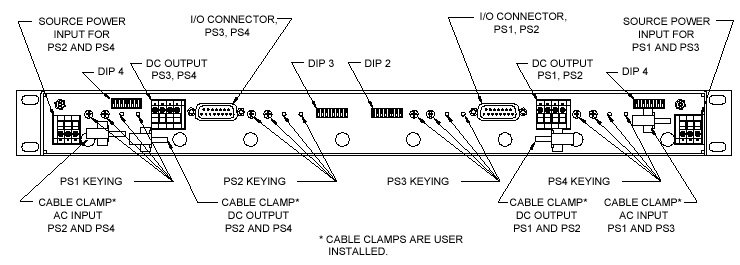

The view of the RA 19-1U rear panel shown above illustrates the dual input power connectors at the both ends of the panel, two I/O connectors and the DC OUTPUT terminal blocks. Note that keying and the configuration DIP switches are accessible from the rear without disassembling the rack. An illustration showing the internal interconnections is also available.

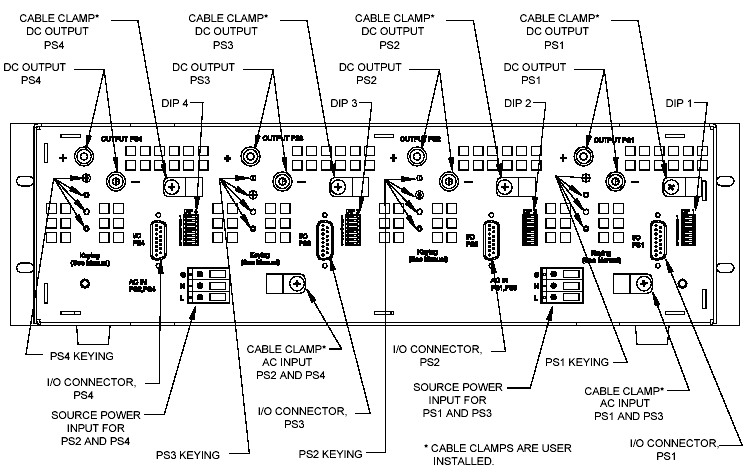

The view of the RA 19-4C rear panel shown above illustrates the dual input power connectors, four I/O connectors and the DC OUTPUT + and - terminals. Note that keying and the configuration DIP switches are accessible from the rear without disassembling the rack.
