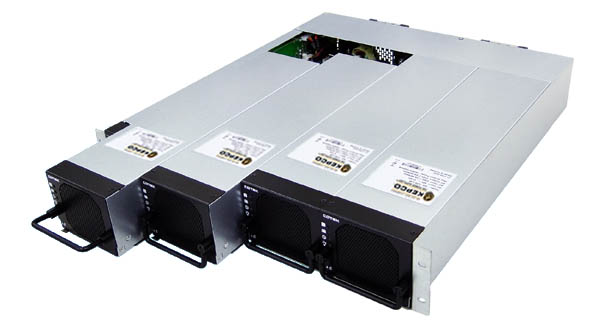

paralleled in a single system. These units are dual mode, switch selectable, accepting either a wide range a-c input in AC Mode or the nominal d-c input voltage, either 24V d-c or 48V d-c as defined by model in DC Mode.Kepco's HSI Series is ideally suited to be a key component of off-grid power systems and can be part of solar cell and grid-attached hybrid systems. HSI inverters can be integrated with Kepco's d-c hot swap power supplies (Series HSP and Series HSF).
Kepco can provide fully integrated d-c UPS systems that provide high availability and maximizing green power. For further details, contact Kepco.
- Hot swappable module with LED indicator
- Standard 19" wide, 2U high, 21 inches deep rack mount using Rack ADapter RA 82
- Zero transfer time
- High efficiency, up to 97% in AC Mode
- Dual input source (AC and DC)
- DC Mode / AC Mode selectable
- Up to 32 modules can be connected in parallel for up to 51.2KW
- Replacable fan module to make maintenance easy
- Input protection: Reverse Polarity / Under Voltage / Over Voltage
- Output protection: Short Circuit / Over Temperature
- Wide AC input range 75~132VAC (110VAC) / 150~265VAC (230VAC)
- CE / FCC approved
- Ideal for off-grid power systems
- Works with PV (photo-voltaic) and grid-attached hybrid systems
- Integrates with Kepco's hot swappable HSP and HSF d-c power supplies
- Component of high availability green DC UPS systems
| HSI MODEL TABLE | ||||||||
| MODEL | INPUT | OUTPUT | RATED POWER | |||||
| AC MODE | DC MODE | |||||||
| Nominal | Range | Nominal | Range | Nominal | Range | |||
| V a-c | V a-c | V d-c | V d-c | V a-c | V a-c | W | VA | |
| HSI 24-120 | 120 | 75 - 132 | 24 | 18 - 34 | 120 | 100 - 120 | 1200 | 1600 |
| HSI 48-120 | 120 | 75 - 132 | 48 | 36 - 68 | 120 | 100 - 120 | 1600 | 1600 |
| HSI 24-230 | 230 | 150 - 265 | 24 | 18 - 34 | 230 | 200 - 240 | 1200 | 1600 |
| HSI 48-230 | 230 | 150 - 265 | 48 | 36 - 68 | 230 | 200 - 240 | 1600 | 1600 |
