OUTLINE DIMENSIONS
|
| DIN RAIL MOUNTING |

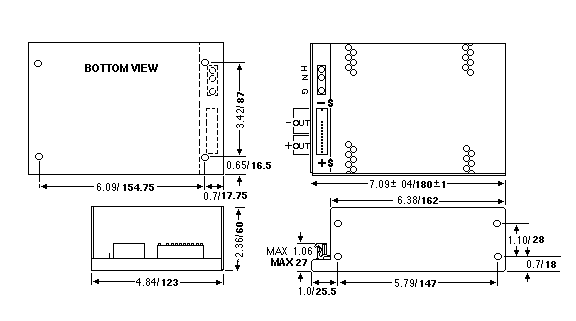

OUTINE DRAWINGS
DIMENSIONS
- inches: 2.36 x 4.84 x 7.09
- mm: - 60 x 123 x 180
NET WEIGHT
1.5 lbs, 0.7 KgOPTIONAL STEEL ENCLOSURE
CA 16INPUT OUTPUT CABLE KIT
219-0145
Dimensions in light face type are in inches, dimensions in bold face type are in millimeters.
Tolerance: ± 0.03" (0.7mm) unless otherwise noted
Mounting: 8-32 tapped holes - (4) bottom; (4) side; maximum screw penetration 0.2" (5mm)
NOTE: Don't take output current from +s, -s terminals of 30W, 60W, 120W models.
