Tolerance: ± 0.028" (0.7mm) between mounting holes; ± 0.04" (1.0mm) other dimensions
Mounting: 8-32 tapped holes -- (4) bottom, (3) each side; maximum screw penetration 0.024" (6mm).

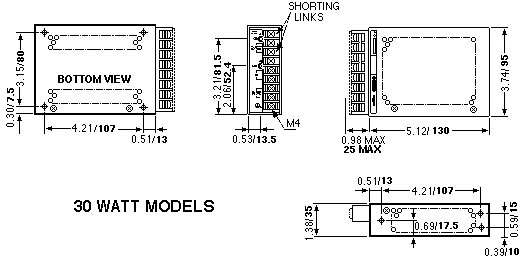

Series ERD Dimensions: 30 Watt Models |
|
Dimensions in light face type are in inches, dimensions in bold face type are in millimeters. Tolerance: ± 0.028" (0.7mm) between mounting holes; ± 0.04" (1.0mm) other dimensions Mounting: 8-32 tapped holes -- (4) bottom, (3) each side; maximum screw penetration 0.024" (6mm).
|
