Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.
Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions

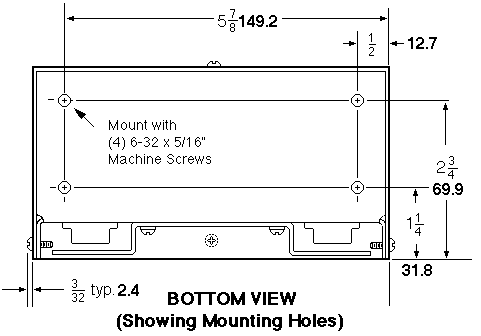

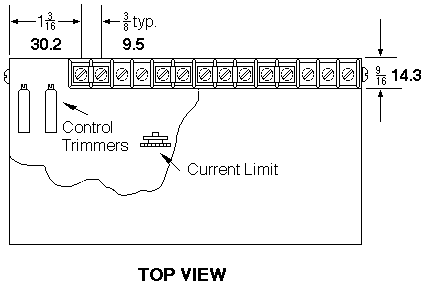

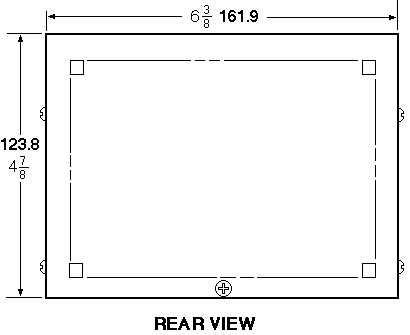

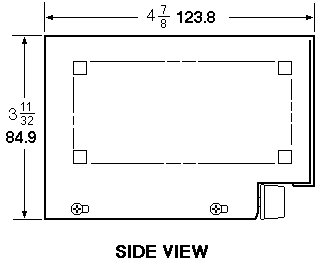

Series PAT Outline Dimensions |
Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions
|
