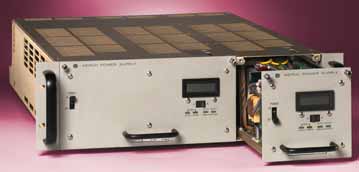

RA 51 Housing with
360 Watt and 720 Watt Modules
To accommodate the 1/3 and 2/3 rack size MAT modules, Kepco offers two housings
called RA 50 and RA 51. RA 50 is 3U, 5 1/4" x 19" x 25" and accepts up to three
1/3 rack power modules. RA 51 is like sized, but configured for one 1/3 rack
module and one 2/3 rack module.
Filler Panels:
- RFP 50-1 (1/3 slot filler)
- RFP 50-2 (2/3 slot filler)
RA 50 and RA 51 FEATURES:
- Each power module installs from the front and has a latching means.
- A MIL-type connector supplies a-c power to the modules.
- Two DIN-type connectors link to the communications bus (arrangement permits daisy chaining).
