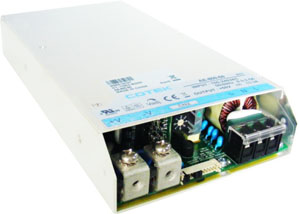

AE 800 Features:

• Universal AC input with active PFC
• 12V, 15V, 24V, 30V, 36V, 48V, 60V models
• Programmable output Voltage (0% - 105% )
• Programmable output Current (0% - 105%)
• 1U profile, High power density
• Constant current limiting
• High efficiency up to 93%
• +5V / 0.5A or +8V/0.3A auxiliary output: selected by user
• Intelligent LED indicators
• Forced current sharing for parallel operation
• Optional RS232 function
• Built-in I²C serial data bus
• Power OK signal (Power good, Logic low)
• Remote ON-OFF, Remote sense functions
• Protections: OVP, OLP, OTP, Fan failure
• 3 years warranty
• Detailed Specifications (PDF)
•
