CT control modules allow remote control of Series AE, AEK and ME power supplies wia RS 232 protocol. The CT modules also support series or parallel configurations of up to eight units. See CT Series User Guide for further details.

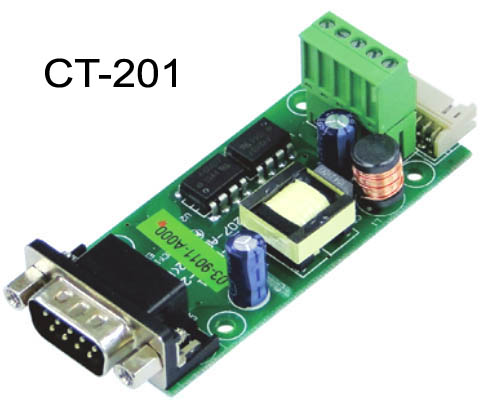

CT-201: Remote control of one power supply using RS 232CT-201 is used for remote control of a single unit via RS 232. Includes CT Series cable (Cotek P/N 47-0124-0001) to connect CT-201 to power supply and one 5-pin connector (Dinkle P/N ECH350R-05P) used for remote sense connections. Requires RS 232 cable to connect CT-201 DB-9F connector to computer RS 232 port (not supplied). See CT Series User Guide for further details.CT-204: Remote Control of between two and eight Power Supplies in Series Configuration using RS 232CT-204 includes four Series Connection Cables, Cotek P/N 47-0124-0001 to connect up to four power supplies to one CT-204. Optional 5-pin connector(s) (Dinkle P/N ECH350R-05P) used for remote sense connections are not supplied. Requires RS 232 cable to connect CT-204 DB-9F connector to computer RS 232 port (not supplied).For control of eight power supplies, two CT-204's are required, plus one additional cable (Kepco P/N 518-0122, Cotek P/N 47-0103-0028) (not supplied) to connect the two CT 204's. See CT Series User Guide for further details. CT-251/CT-551: Remote Control of between two and eight Power Supplies via RS 232One CT-251 and one CT-551 are required for two power supplies in parallel. For each additional power supply over two, add one CT-551. Series Connection cables (Cotek P/N 47-0124-0001) are included which connect either CT-251 or CT-551 to the power supply. Parallel connection cables (Cotek P/N 47-0106-0003) are included which connect CT-251 and CT-551 modules in a daisy chain using RS 485 communication. Cable connecting computer to CT-251 RS 232 port is not supplied. See CT Series User Guide for further details. |
